HRGF-1000Dry process composite machine

Release time:2018-05-09Clicks:78

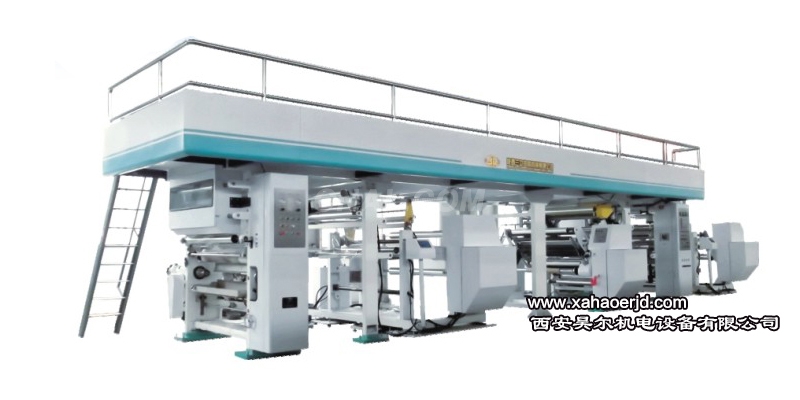

HRGF-1000Dry process composite machine

The HRGF-1000 type compound machine is the economic model developed by our company on the basis of printing and compound packaging materials and equipment for many years. It is mainly used for composite plastic film and plastic film, plastic film and aluminized film, plastic film and aluminum foil. It is a model with low investment and high profit.
Two. The main technical parameters
L substrate coiling diameter: Phi 800 mm
L substrate material: PA:15~40 m, PVC:12~50 M
PET:12~50 mu m, PE:20~50 mu m and so on
L second substrate coiling diameter: Phi 800 mm
L second substrate material: including base material and aluminum foil: 7~30 M
L coil diameter: Phi 800 mm
L reel roll diameter: 3in
L roll surface width: 1000 mm
L mechanical speed: 120 m/min
L running speed: less than 80m/min
L tension range: 3~30kg
L tension precision: + 0.5kg
L correction accuracy: + 0.3mm
L total power: 108KW
L machine dimensions (length width height): 11000 x 2650 x 3650mm
