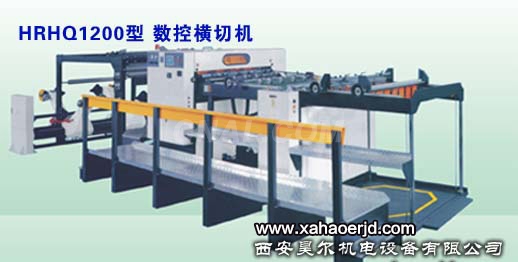

HRHQ1200Type numerical control crosscutting machine

The machine is mainly suitable for the cross cutting of all kinds of paper and cardboard rolls, automatic hydraulic roll up, closed loop constant tension automatic control system, paper feeding and cutting paper computer control, high and low speed belt conveying paper, automatic and orderly stacking. The machine has high precision in cutting paper and stable and reliable operation.
Main technical parameters
Adapt to the base material 200 - 500g/m2
Coiling straight through 1600mm
Paper cutting width 1100mm
Paper cutting length 1200mm
Cut 100 times /min
Length of length of + 0.2mm
Stacking height 1250mm
Paper stacking uniformity + 2mm
Whole machine power 25kW
Gas source 0.8Mpa
Shape size 8000mm x 1810mm x 1850mm
Total weight 8000kg
