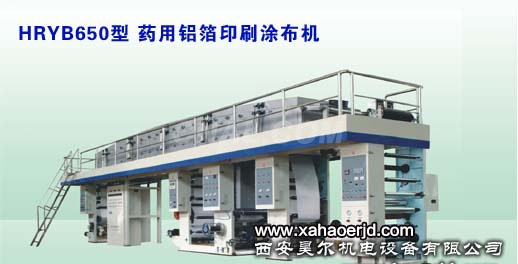

HRYB650Type medicinal aluminum foil printing coating machine

The machine is a positive (or reverse) printing, positive and negative coating for PTP medicinal aluminum foil. It can also be printed and coated on other related amplitude materials. It is a multifunctional model, automatic control of constant tension and good product quality.
Main technical parameters:
The diameter of the reel: < < < 600mm
Coil diameter: < < < 600mm
Rewinding paper core: 3in
Adaptation to base material: aluminum foil: 0.01 ~ 0.08mm
Paper: 35 to 120g/m2
Substrate width: less than 600mm
Design speed: less than 70m/min
Printing speed: 60m/min
Plate roll diameter: 128 ~ 160mm
Coating roll diameter: 150 ~ 160mm
Drying method: far infrared heating wind
Heating power: 177Kw
Machine power: 192Kw
Machine weight: about 15.8T
Size (Length *Width *Height): 11900 *3360 *3410mm
